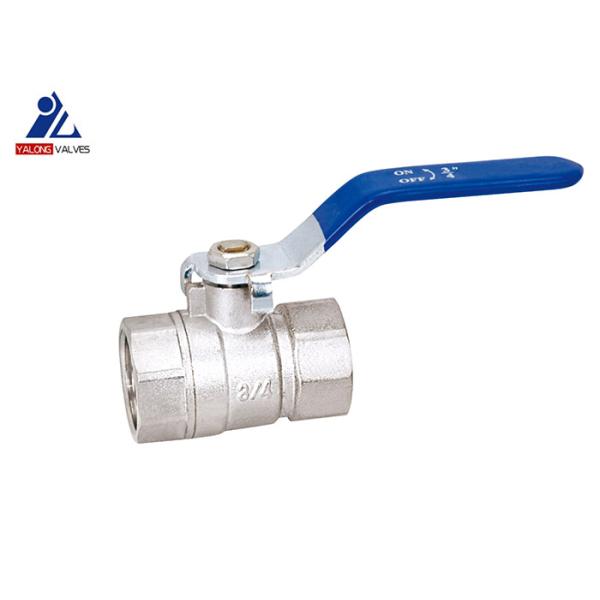

YL201 1/4 Inch to 4 Inch 200WOG Steel Handle Nickel Plated Brass Ball Valves
1. Nominal Pressure: 2.0MPa
2. Working Temperature: from -20℃ to +150 ℃
3. Parallel Pipe Thread: ISO228
4. Structure Ball
- Female x Female brass threaded ball valves with Iron flat lever handle.
- The thread(NPT or BSP), color of handle, materials, etc. can be customized.
| DN | SIZE | D | H | L | B |
| 8 | 1/4'' | φ8 | 36 | 39 | 80 |
| 10 | 3/8'' | φ10 | 36 | 42 | 80 |
| 15 | 1/2'' | φ13 | 40 | 47 | 90 |
| 20 | 3/4'' | φ17 | 48 | 54 | 100 |
| 25 | 1'' | φ23 | 55 | 66 | 110 |
| 32 | 1-1/4'' | φ30 | 68 | 76 | 120 |
| 40 | 1-1/2'' | φ38 | 79 | 87 | 130 |
| 50 | 2'' | φ45 | 90 | 95 | 150 |
| 65 | 2-1/2'' | φ57 | 98 | 123 | 173 |
| 80 | 3'' | φ62 | 110 | 132 | 190 |
| 100 | 4'' | φ85 | 125 | 170 | 230 |
Materials of Parts
| No. | Part | Materials |
| 1 | Body | Copper |
| 2 | Bonnet | Brass |
| 3 | Ball | Copper |
| 4 | Seal | PTFE |
| 5 | Stem | Brass |
| 6 | O ring | NBR |
| 8 | Handle | Iron |
| 9 | Nut | Iron |
EstZhejiang Yalong Vavles CO., LTD established in 1999, located in Yuhuan (The City of Valves), Zhejiang province. Covering an area of over 35,000 square meters. Yalong has rich experience in producing various brass valves of all size, including gate valves, ball valves, stop valves, check valves, float valves, strainer valve, etc. We regard quality as our company’s lifeblood and of paramount importance and while increase investment in producing equipment, and purchase advanced inspection machine. Not only in the pass but also in the future, we insist the belief --“Quality first and offer best service”. we keep on management innovation, technological innovation, Channel Innovation and service innovation.
Yalong Valve, classical and durable, is worth your trust!l
Welcome customers from all of world to win-win cooperation; join hands to create a better future!
|
|
